Parameters
Part Type
replacement
Manufacturer Part Number
Hydraulic Log Splitter Pump
Interchange Part Number
Hydraulic Log Splitter Pump 13 GPM @ 650 PSI
Compatibility
| Make | Model | Year | Trim | Engine | Notes |
|---|---|---|---|---|---|
 No Data Yet | |||||
$ 176.00
Market Price: $204.00 0 People Puchased
Free Delivery

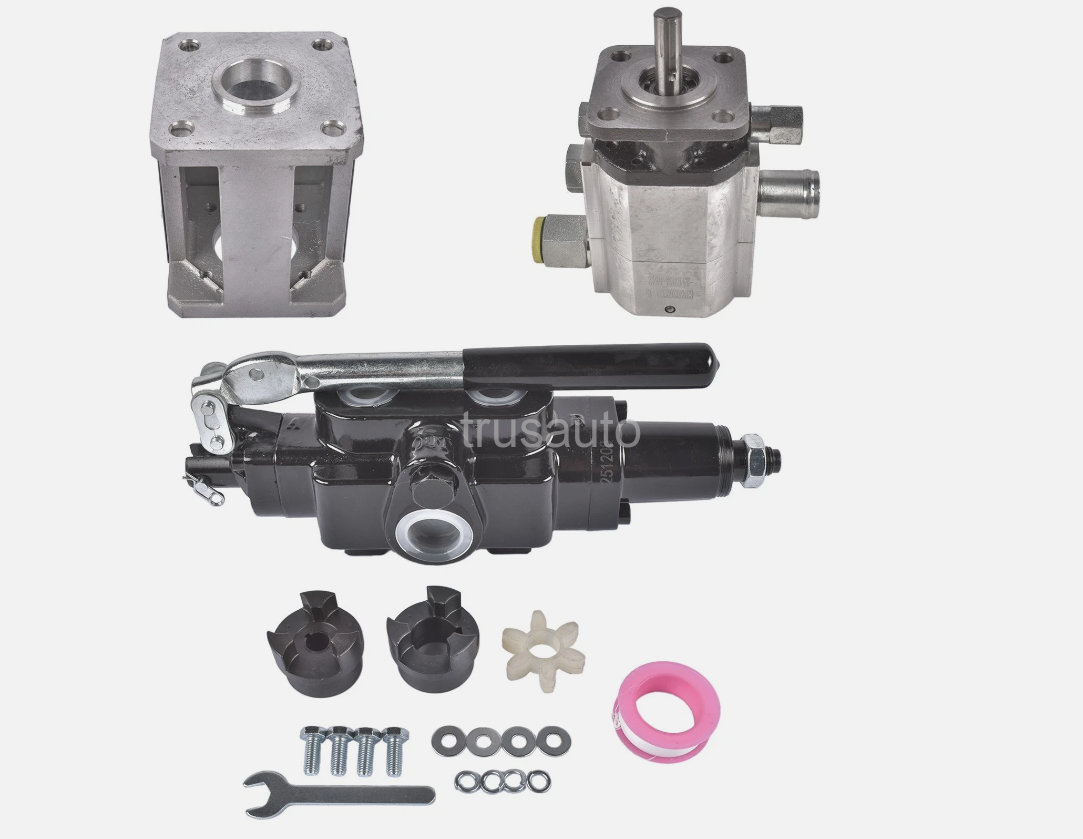

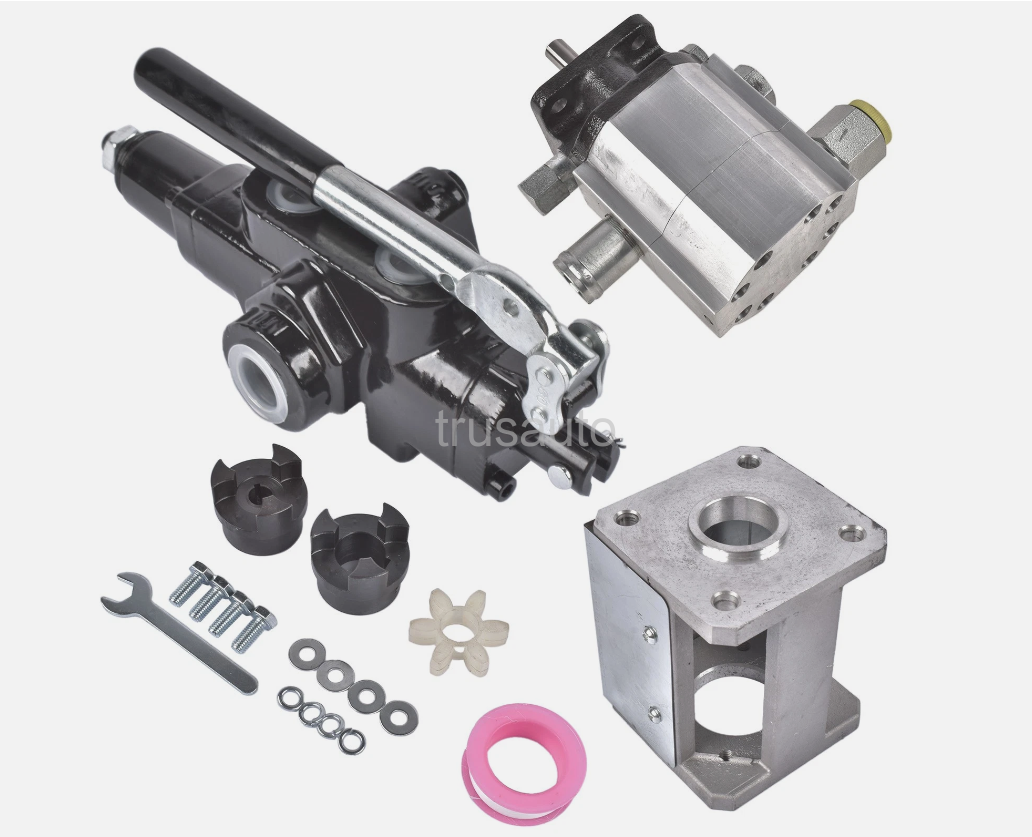

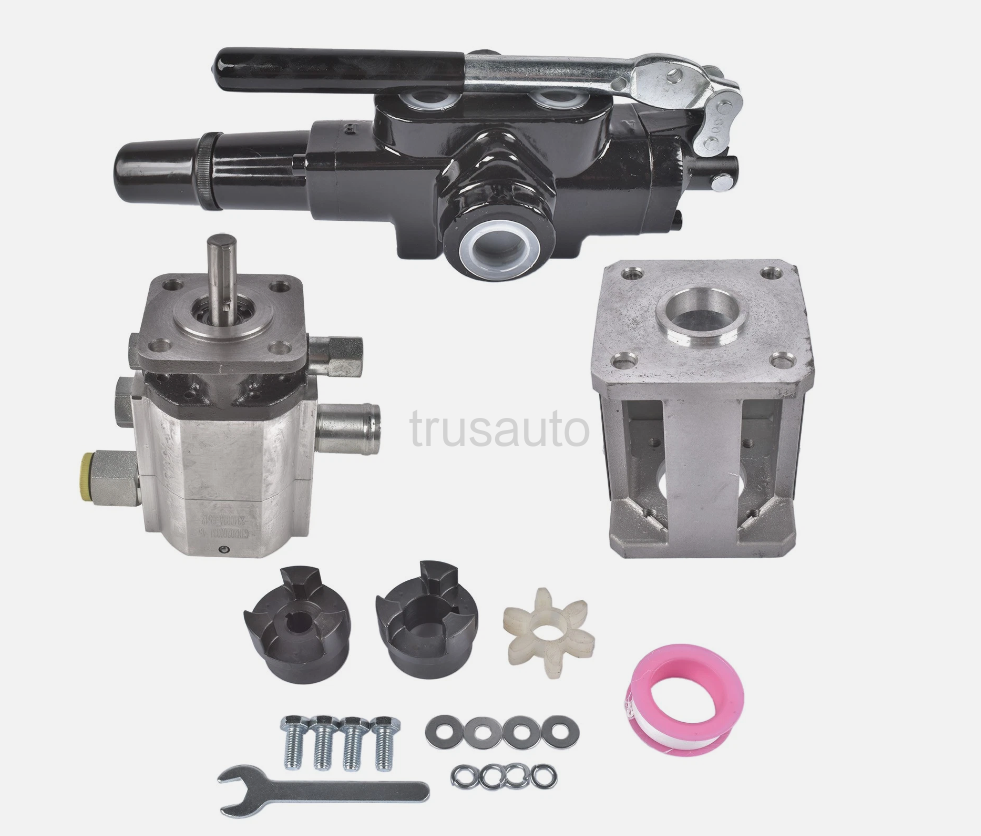

Log Splitter Component Set 16GPM Pump A7 Auto Return Valve Mount Bracket Coupler
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Expected shipping date : Shipped on the second business day.
Shipping cost : For shipping within the United States, most regions are eligible for free delivery, with only a few remote areas subject to pricing based on specific shipping rules.
Return : 60 days returns. Buyer pays for return shipping.
Protection : within 2 years.
$ 176.00
Market Price: $204.00 0 People Puchased
Free Delivery
Log Splitter Component Set 16GPM Pump A7 Auto Return Valve Mount Bracket Coupler
Quantity:
-
+
If you have a large demand for this product, please send an email to sale@trusauto.us, and we will contact you as soon as possible.
Descriptions
High Flow Rate: New hydraulic log splitter pump delivers 16 GPM at 3600 RPM. First stage: 13 GPM @ 650 PSI, second stage: 3 GPM @ 2500 PSI.
Standard Ports & Shaft: Shaft diameter ½”. Inlet port 1”, outlet port ½” NPT.
Compact Dimensions: Overall length 7-1/4” with shaft, 5-5/8” without shaft. Body width 3”, mounting surface width 3-3/8”.
Engine Requirement: Minimum 8 HP or larger gas engine, direct drive only, horizontal shaft (can be mounted vertically or horizontally).
System Compatibility: For use with open center hydraulic systems only.
Specifications
This valve is a 2-way operation Log Splitter valve
- Direction 1: Actuate lever by hand, release it and it returns to neutral.
- Direction 2: Actuate lever by hand, release it and it stays in the actuated position (active) until the hydraulic cylinder bottoms out (or otherwise senses a spike in hydraulic pressure), at which time the detent will kick the lever back to the neutral position (inactive)
- Single spool, Open center.
- Max pressure rating: 4000 psi.
- Relief valve set at 3100psi but is adjustable between 1000 psi and 4000 psi
- Working ports ½”NPT.
- In/Out ports ¾” NPT
- Detent Pressure set at 700 psi but is adjustable. (Detent accessed by removing end cap)
- Replacement for SpeeCo, MTD, Brave, Swisher, and others, but can also be used for any DIY hydraulic project
